Scalable architecture
The original version of this document was written before Rapidminer® AI Hub software (then called RapidMiner Server) was reconfigured as a set of Docker images. Here we have only slightly modified the text, ignoring many of the peripheral components that were introduced later, in order to better concentrate on the heart of the system.
The design
The design of the Rapidminer AI Hub Server environment reflects a typical data science workflow, where there are two kinds of activities:
Model building, involving long-running processes that can be placed on a queue and run asynchronously
Rapidminer AI Hub Server offers a queue system for long-running jobs, which are executed externally via Job Agents. You increase processing power by adding Job Agents.
Prediction, or any other application of the models, where the need for a real-time response is paramount
There are two engines for generating predictions:
- Web API Agents, managed, load balanced entities that can be run externally or internally
- Scoring Agents, external entities that run independently of Rapidminer AI Hub
You increase processing power by adding Scoring Agents or Web API Agents.
Typically, you will use Rapidminer® AI Studio software to design the processes you will run in the Rapidminer AI Hub environment.

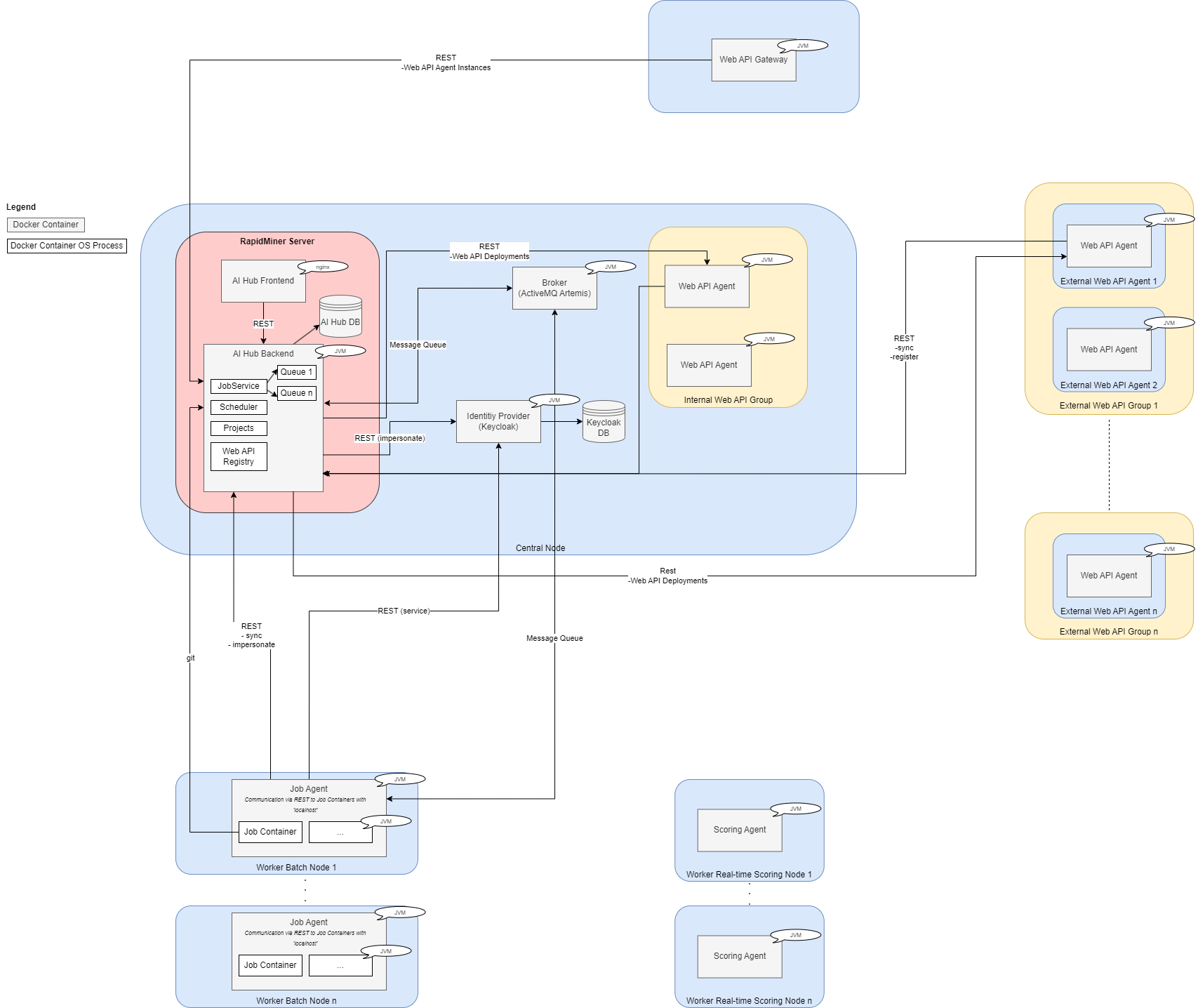

In the diagram below, each blue box represents a separate machine.
- Rapidminer AI Hub Server is installed on the big blue box on top.
- Remote Job Agents are hosted on the blue boxes at the bottom.
- Scoring Agents function independently, on the side
- The Web API Agents can reside on the Rapidminer AI Hub Server Node or standalone
- The Web API Gateway can be on the Rapidminer AI Hub Server Node or standalone
Rapidminer AI Hub Server
Rapidminer AI Hub Server is the central component in the architecture. You interact with it via a web interface or via Rapidminer AI Studio. Its main responsibilities are:
- User, queue, and permissions management
- Scheduling of user jobs (processes)
- Execution of processes running on the local Job Agent, if it exists
- Project management (storage of models, processes, etc. and permissions for them)
- Connection management (DB, Hadoop/Radoop, etc.)
Read more: Install Rapidminer AI Hub
Job Agent
The design with Job Agents running remotely on dedicated machines is aimed at scalability.
Each Job Agent is configured to point to one of the queues on Rapidminer AI Hub Server. Its only responsibility is to pick up jobs from the queue and run them. When started, the Job Agent spawns a configurable amount of Job Containers as separate system processes. Jobs are then redirected to those Job Containers and Rapidminer® software processes are executed within the spawned Job Containers. When the Job Agent is shut down, all Job Containers of this Job Agent are also shut down. For each Job Agent, the number of Job Containers that can be spawned and the available memory is configurable.
Multiple Job Agents can point to the same queue. You can manage the queues, and therefore the allocation of resources, by assigning permissions.
Read more: configure Job Agents, configure Job Containers
Job Container
The Job Container spawned by the Job Agent runs a Rapidminer AI Studio instance that is capable of executing a Rapidminer process. It's bound to a system port in order to accept jobs from the Job Agent via REST API.
By default, the Job Container will not terminate after each process, therefore providing a nearly instant execution of processes.
It might be desirable to run each job in its own sandbox so that the system is more robust and jobs won't have any effect on previously run jobs. This behavior can also be configured, e.g. to restart the Job Container after a process finished. Please refer to the Job Agent's configuration page for further details.
The price of this safety is latency -- the latency in restarting the Job Container is measured in seconds. Each job will then have this additional latency.
If a real-time response is paramount, we recommend using a Web API agent or a Scoring Agent. For example, you might build a model in a Job Container and generate predictions for that model via a Scoring Agent.
Web API Agent / Scoring Agent
As mentioned previously, there are two engines for generating predictions:
- Web API Agents - communicate with Rapidminer AI Hub
- Scoring Agents - run independently of Rapidminer AI Hub
When generating predictions via the Scoring Agent, you need Rapidminer AI Hub to create an endpoint, but after that you may choose to run your processes independently of Rapidminer AI Hub.
The Web API architecture is designed to offer the same level of management and services for Web API agents as provided by Rapidminer AI Hub for the Job Agents, with the Web API Group taking the role of the queue.
As the table below makes clear, the Web API Agent / Scoring Agent is the scalable, low-latency counterpart to the Job Agent / Job Container.
| Component | scalability | low-latency response | instant execution |
|---|---|---|---|
| Job Agent / Job Container |  |
 |
|
| Scoring Agent | |
|
|
| Web API Agent | |
|
|
Read more:
Default ports and communication paths
The following table outlines internally used default port(s) by the Rapidminer AI Hub platform. In an actual deployment like the docker-compose setup, some of those ports are routed through a reverse proxy like nginx which serves as sole entry point when communicating from Rapidminer AI Studio or any other third-party application with Rapidminer AI Hub. In such scenarios, those ports are not exposed by default or are set up to be in an internal network only.
| Application | Default service port(s) | Default optional/debug/metric port(s) | REST communication | Broker communication |
|---|---|---|---|---|
| ActiveMQ Artemis (Broker) | 61616 | 8161 | - | Rapidminer AI Hub Backend, Job Agent |
| Rapidminer AI Hub Backend | 8080 | 8077 | - | Job Agent |
| Rapidminer AI Hub Frontend | 80 | - | Rapidminer AI Hub Backend | - |
| Job Agent | - | 8066 | Rapidminer AI Hub Backend, Job Container (via localhost) | Rapidminer AI Hub Backend |
| Job Container | 10000... (localhost listen on Job Agent) | - | Rapidminer AI Hub Backend, Job Agent | - |
| Scoring Agent | 8090 | 8067 | - | - |
| Web API Agent | 8090 | 8067 | Rapidminer AI Hub Backend, Web API Gateway | - |
| Web API Gateway | 8099 | 8078 | Rapidminer AI Hub Backend, Web API Agent | - |
| License Proxy | 9898 | 9191 | Altair License Manager, Rapidminer AI Hub Backend, Job Agent, Web API Agent, Scoring Agent (depends on configuration) | - |
